In today’s built environment, energy efficiency, carbon reduction, and compliance with HVAC standards are top priorities. One of the most effective strategies to achieve these goals is the integration of heat recovery systems within Air Handling Units (AHUs) and mechanical ventilation systems. By reclaiming thermal energy that would otherwise be wasted, heat recovery ventilation (HRV) devices enable buildings to lower operating costs, improve sustainability performance, and maintain thermal comfort in line with ASHRAE, CIBSE, and Eurovent standards. Companies such as Air Handlers Northern have developed advanced solutions to integrate efficient heat recovery technologies into modern HVAC projects.
From a practical standpoint, it is inefficient to condition indoor air—cooling it in summer or heating it in winter—only to exhaust it directly outdoors. While ventilation rates must comply with indoor air quality (IAQ) and health requirements (e.g., ASHRAE 62.1, EN 16798), exhausting large volumes of conditioned air wastes energy. Heat recovery units (HRUs) address this challenge by transferring energy from the exhaust airstream to the incoming fresh air. This reduces the HVAC load, optimizes system efficiency, and helps achieve net-zero carbon building targets.
What is Heat Recovery?
Heat recovery is the process of capturing thermal energy from exhaust air or waste heat streams and using it to precondition incoming outdoor air. Instead of letting valuable energy escape, heat exchangers recover and transfer it, reducing the demand on chillers, boilers, and DX cooling systems.
The most common heat recovery technologies in building services include:

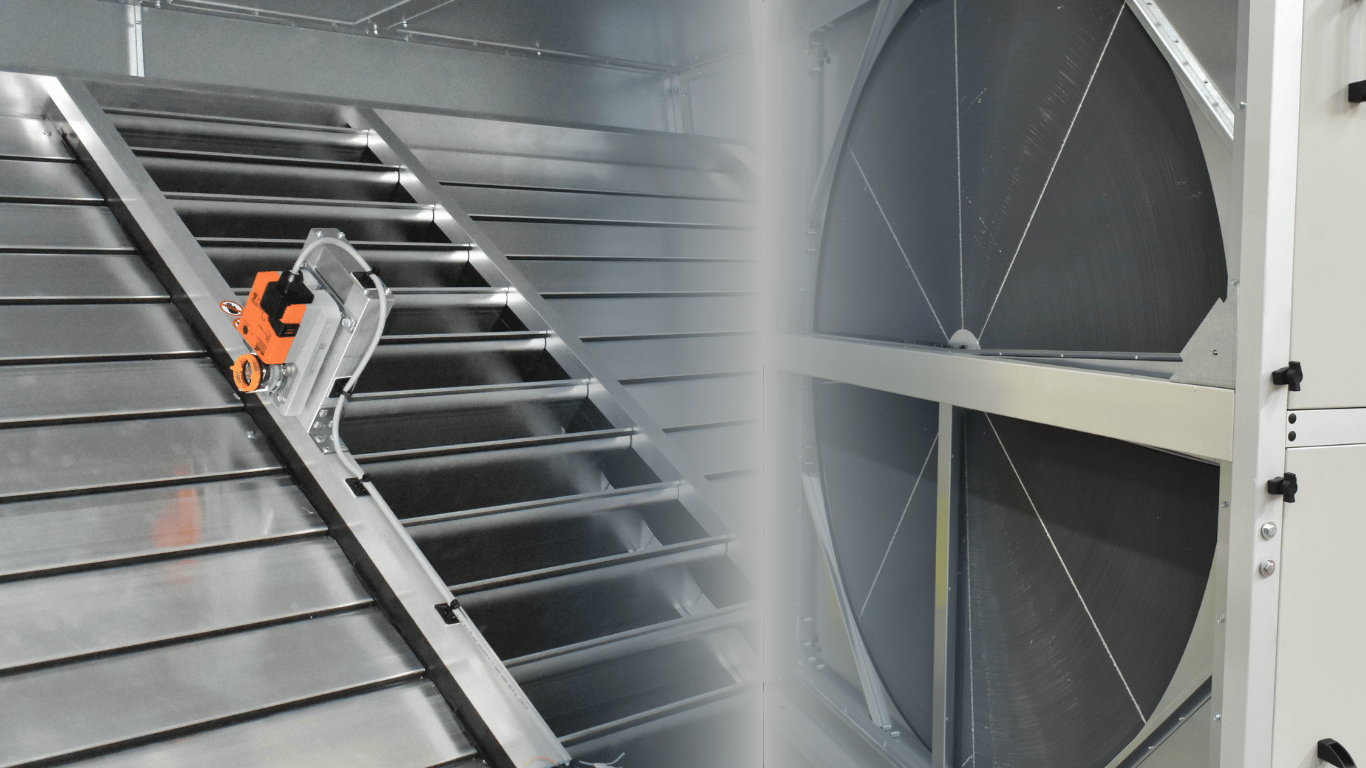

- Plate Heat Exchangers (PHEs) – Supply and exhaust airstreams pass through separate channels, allowing thermal transfer without air mixing. This makes them ideal for hospitals, cleanrooms, and laboratories, where contamination control is critical.
- Thermal Wheels (Rotary Heat Exchangers) – Rotating elements that transfer both heat and (optionally) moisture between supply and exhaust air. Widely used in commercial offices and schools, they enhance humidity control and reduce cooling demand.
- Run-Around Coil Systems – Two coils linked by a water or glycol circuit, suitable where supply and exhaust ducts are physically separated. These are often applied in retrofit projects and industrial ventilation.
Why is Heat Recovery Important?
- Energy Efficiency and Operational Cost Savings
Heating and cooling are among the largest contributors to a building’s energy consumption. Without heat recovery, HVAC systems must provide full conditioning of outdoor air, increasing reliance on chillers, heat pumps, and boilers. By recovering energy from exhaust air, the energy efficiency ratio (EER) of the system improves significantly. For example, a thermal wheel can reduce incoming air temperature by 6–8°C in summer, reducing DX coil and chiller loads. - Improved Indoor Air Quality (IAQ)
Standards such as ASHRAE 62.1, EN 13779, and CIBSE Guide B2 require sufficient fresh air supply to maintain occupant health. Conditioning 100% outside air, however, is energy-intensive. Heat recovery systems allow high ventilation rates (ACH – air changes per hour) while minimizing energy costs, ensuring a continuous supply of fresh, filtered, and comfortable air. - Environmental and Sustainability Benefits
By lowering HVAC energy demand, heat recovery systems contribute to carbon reduction strategies, BREEAM, LEED, and WELL Building Standard credits. They are increasingly specified in low-energy buildings and net-zero carbon roadmaps to support environmental compliance. - System Longevity and Reliability
Reducing heating and cooling loads extends the lifespan of major plant equipment such as boilers, chillers, compressors, and fans. This not only decreases maintenance costs but also improves system resilience, which is critical in mission-critical facilities such as hospitals, data centers, and pharmaceutical production sites. - Wide-Ranging Applications
Heat recovery technologies are applied across multiple sectors:
- Residential buildings – via Mechanical Ventilation with Heat Recovery (MVHR) systems.
- Commercial buildings – offices, retail, education, and healthcare facilities.
- Industrial processes – where waste heat recovery reduces energy demand.
- Specialized environments – such as swimming pools, where warm, humid exhaust air provides high recovery potential.
Air Handlers Northern Heat Recovery Solutions
You can find more information on how we integrate heat recovery devices into our products by exploring the EvoHR Heat Recovery Units, Air-Adapt Series, and Envirofresh, Air-PRO & Skid-Pak Series from Air Handlers Northern. Our tailored solutions are designed to maximize efficiency, improve indoor air quality, and support sustainable building performance. Whether for commercial offices, hospitals, schools, or industrial facilities, Air Handlers Northern delivers AHU and heat recovery systems that meet the most demanding performance and compliance requirements.
